Canadian Shield

Lore & Background

The Canadian Shield is a physiographic region comprising four smaller provinces: the Davis, James, Kazan, and Laurentian regions. It once had jagged peaks higher than any of today's mountains, but hundreds of millions to billions of years of erosion have transformed these mountains to rolling hills. The shield was originally an area of very large, very tall mountains with much volcanic activity, but the area was eroded to nearly its current topographic appearance of relatively low relief over vast spans of time. Erosion has exposed the roots of the mountains, which take the form of greenstone belts in which belts of volcanic rock altered by metamorphism are surrounded by granitic rock.

Reader's Guide

The Canadian Shield is significant as the largest exposed part of the North American craton's bedrock and as one of the world's richest areas for mineral ores, containing substantial deposits of nickel, gold, silver, and copper. It is also notable for its deranged drainage system of rivers and lakes caused by glaciation and post-glacial rebound. The shield's ecology features thin soil, boreal forests, taiga, and tundra, supporting diverse wildlife including beaver, caribou, moose, wolves, and polar bears. Its mining towns, such as Sudbury, Ontario (site of an ancient meteorite impact crater), and the Flin Flon greenstone belt, have yielded vast quantities of sulfide ores and diamonds. The shield also contains the Mackenzie dike swarm, the largest known on Earth, and the Sturgeon Lake Caldera, one of the world's best preserved mineralized Neoarchean caldera complexes.

Did You Know?

• The Canadian Shield once had jagged peaks higher than any of today's mountains, though their exact height is not precisely known.
• The Sturgeon Lake Caldera in Kenora District, Ontario, is one of the world's best preserved mineralized Neoarchean caldera complexes, dating to 2.7 Ga.
• The Mackenzie dike swarm, found in the Canadian Shield, is the largest dike swarm known on Earth.
• The Sudbury Basin is an ancient meteorite impact crater, and ejecta from it has been found in the Rove Formation.
• The Diavik mine, the longest running diamond mine in Canada, stopped producing diamonds in 2026 after 23 years.

Ancient Origins and the Long Erosion

The Canadian Shield preserves some of the oldest rock on Earth, with sections reaching back roughly 4.28 billion years. In its earliest form, this region was nothing like the gently undulating terrain visible today. Instead, it was dominated by colossal peaks—estimated at around 12,000 metres in height—shaped by intense volcanic activity that built the continent's deep interior. Over more than 500 million years, relentless erosion ground those towering ranges down to the low-relief landscape we now recognize. What lies at the surface are the exposed roots of those ancient mountains, visible as greenstone belts where metamorphosed volcanic rock is encased in granitic formations. These belts span an age range from 3.6 to 2.7 billion years and belong to a distinctive family of tonalite, trondhjemite, and granodiorite rocks that typify Archean continental crust. The shield thus stands as a living archive of Earth's earliest geological chapters, preserving evidence of processes that predate complex life by hundreds of millions of years.

Vast Geographic Reach and Provincial Structure

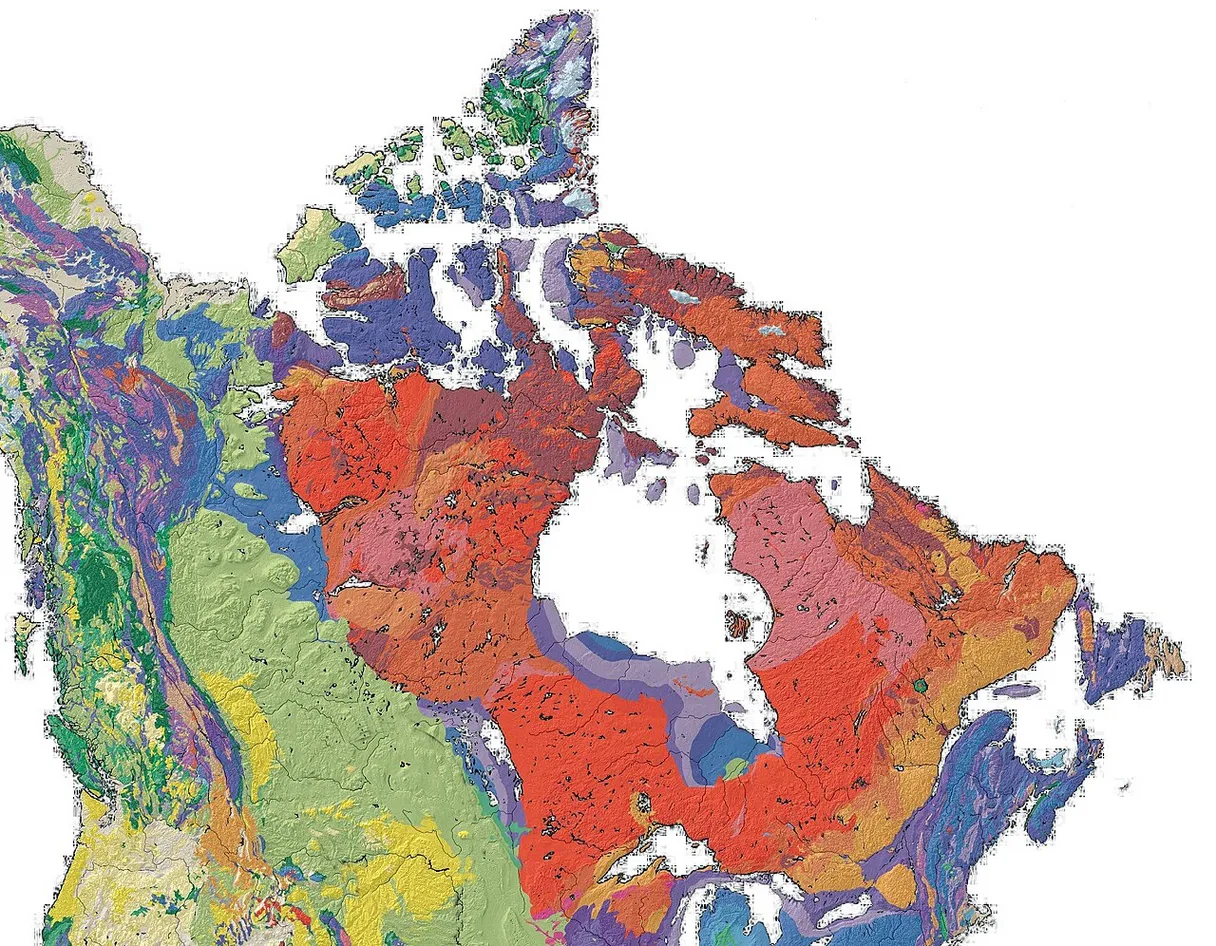

The Canadian Shield is organized into four smaller physiographic provinces—the Davis, James, Kazan, and Laurentian Regions—and it marks the portion of the Laurentia craton most profoundly reshaped by glacial scraping. When the Greenland segment is included, the shield takes on an almost circular outline, with Hudson Bay sitting near its centre. Its exposed surface spans roughly 8 million square kilometres, stretching across most of Greenland, all of Labrador, the Great Northern Peninsula of Newfoundland, much of Quebec north of the St. Lawrence, large swaths of Ontario, the Adirondack Mountains, Upper and Lower Michigan, northern Wisconsin, northeastern Minnesota, central and northern Manitoba, portions of Saskatchewan and Alberta, and significant areas of the Northwest Territories and Nunavut, including Baffin Island and bands through several Arctic Archipelago islands. The true geological footprint extends even further, reaching from the Western Cordillera to the Appalachians and as far south as Texas, though those outer margins are buried beneath much younger sedimentary layers.

Glacial Legacy and Living Ecosystems

The present-day surface of the shield tells a story written by ice. Repeated glaciation during the ice ages scraped the bedrock nearly clean, leaving only a thin veneer of soil through which igneous outcrops are frequently visible. In the lowlands, dense compacted ground supports marshes and bogs known as muskegs, while the broader region features coarse, moisture-poor soil that remains locked by permafrost for much of the year. Southward, vast boreal forests blanket the landscape, sustaining both natural ecosystems and a significant logging industry. Further north, these forests thin into the Eastern Canadian Shield taiga across northern Quebec and most of Labrador, and into Midwestern taiga in the far northern reaches of Manitoba and Saskatchewan. Tundra dominates the most northerly zones. The region teems with wildlife—caribou, moose, wolves, wolverines, mink, otters, grizzly and black bears, and polar bears, the latter finding critical denning sites in places like Wapusk National Park. The countless lakes and rivers, a product of deranged drainage from glacial disturbance, host abundant sport fish including walleye, northern pike, lake trout, and yellow perch.

Mineral Wealth and Structural Marvels

Beneath the shield's modest topography lies a treasury of geological formations of global significance. The greenstone belts—where metamorphosed volcanic rock is flanked by granitic intrusions—are intimately linked to many of Canada's major ore deposits, a connection that has shaped the nation's mining history for generations. Among the shield's most remarkable individual features is the Sturgeon Lake Caldera in Ontario's Kenora District, recognized as one of the world's best-preserved mineralized Neoarchean caldera complexes at 2.7 billion years old. Equally striking is the Mackenzie dike swarm, the largest collection of dikes known anywhere on Earth. The shield also formed part of an ancient supercontinent called Arctica, assembled during the Neoarchean era around 2.5 billion years ago. Because the rocks now at the surface were once buried at tremendous depths, the extreme pressures and temperatures experienced there created ideal conditions for mineralization. The North American craton, of which the shield is the largest exposed portion, remains the bedrock heart of the entire continent.
